Double, Double Toil and Trouble

20180502_105955

People sometimes ask me, “Where did you learn how to fix your bike?” I answer, “I didn’t. I’m still learning.” Being a DIY guy is a never-ending process. But the start is usually the same: an oil change. The first thing I did with my 650GS is change the oil and coolant, and because we live in the YouTube era, I lucked out and found a great how-to video by Kirk of the BMW Motorrad Club of Northern Illinois doing this very service on my exact bike! I love Haynes Manuals, but there’s nothing like seeing someone do it “in person.”

From there, I changed my brake pads. Brakes! you say. Don’t you want to get those done by a professional? I know, there’s an emotional component to brakes, but the fact is, they’re really not that complicated—a disc squeezed between two asbestos-lined pads.  When time came (40K) for valve adjustment, I did a bunch of research and plunged in. Each time I start a job I don’t know where I’m going but I figure it out along the way. As the American poet Theodore Roethke says, “I learn by going where I have to go.” And each time I go, I learn more about my bike.

Sometimes the journey is made longer because you don’t know what the cause of your troubles is. All you’ve got are the symptoms. In those cases, your diagnosis is easily half the work. Now if you are an experienced mechanic, you’ve seen it all and you can make an educated guess and save yourself a lot of time. Or you have a machine that costs the equivalent of my monthly wage and does the diagnosis for you. But if you’re a DIY guy on a budget, and this is the first time you’ve experienced these symptoms, you’ve only got the Fault Finding section of your service manual, the brain hive of a good user forum, and your intuition. Using these three tools in the right combination is the most useful wrench in your toolkit.

So when my bike overheated last fall after a little tip-over in sand, spewing boiling coolant out the overflow reservoir, I packed my bags and stepped out for a new journey, one that would prove to be especially long.

I don’t know how the editors of service manuals order the list of probable causes to certain problems. Do they list them in order of most probable to least, cheapest and simplest to expensive and complicated, or some combination of both? Since I’m on a tight budget, I tipped the scales toward cheapest fix first. Top of my list, then, were things like coolant level low, radiator pressure cap defective, thermostat stuck open or closed. So I started there, specifically with the thermostat. I took it out and tested it, sticking it in a pot of water on the stove with a thermometer. It opened just fine at the temp it was supposed to but didn’t close once the water cooled. Hmm . . . Could this be the problem? So off I went to BMW for a new thermostat. At $65, it’s got to be one of the cheapest parts on this bike, so I was hopeful I’d found the problem.

I put the new thermostat in and rode one block and the temp light came on. Damn!

Next I focused on the fan. Was it running when the bike overheated? I couldn’t remember so I texted my riding buddy. He couldn’t remember hearing it running either. Maybe there’s a problem with my fan, then? I connected it directly to the battery. It worked. Good, I guess. Maybe the sensor that turns on the fan is defective? My neighbours must have been wondering what I was doing with my camping stove out on the driveway beside the bike, but I had taken the sensor out of the engine block and was heating it in a pot of water, as I did with the thermostat on the stove. The fan did not turn on. So off I went to BMW for a new sensor. I was confident I’d found the problem.

I put the new sensor in, started the bike and ran it up to temp. The fan turned on. Great! Then I rode one block and the temp light came on. Damn!

Turns out the sensor works by pressure as well as temperature, so heating it alone would not trip it. On the plus side, the fan was turning on, so I knew that system at least was working properly.

The most recent time the temp light came on I noticed some coolant dripping from the bottom corner of the radiator. I surrendered to what I was dreading and denying: the radiator must be leaking. At $600 for a new one, this brings us to the point in the journey where I decide to stick the bike into winter storage early and avoid the problem, at least until spring.

It’s been a pretty brutal winter here in Montreal. Finally spring came, I bought the new rad, installed it, rode one block and the temp light came on. Damn! Double damn!

I’m not going to say the rad wasn’t broken, because I think it was. It was bent from the tip-over and clearly leaking, or so my wallet says. So my problem is . . . shall we say, multifaceted. I little sleuthing on my favourite forum uncovered that the water pump on my bike tends to go at around 50-60,000 kilometres. My bike now has 63,000. I knew this before buying the rad, but because it’s quite an involved process to get to the pump, and because the rad was leaking, I thought it was a long-shot that the pump would go at the same time as the rad. But go it did. When I finally got the pump apart, which involved taking the clutch cover off, the gear that drives the impeller was stripped.

Believe it or not, I was actually happy to see this, for at least then I knew what the cause of my problem was.

How was I to know that both the radiator and the pump were broken? And the pump issue seems to be unrelated to the tip-over. There’s been an effort on the forum to try to get to the bottom of what’s causing the stripped gears but there doesn’t seem to be any consistency. For some guys, it happens out of the blue with no apparent cause; for others, it’s after a drop. My guess is that the impeller shaft gets worn and starts to wobble. Sometimes this results in the seals leaking, sometimes the gears stripping. At any rate, it seems to be the Achilles heel of this bike. Now I know.

With the bike back together again and all fluids replaced, I rode off and the temp light did not come on. Now I’m ready for another season and my journey can be of the real kind.

I enjoy working on the bike, or any kind of manual work, actually. Okay, sometimes there are frustrations, like when I couldn’t figure out how to get the clutch cover off with the oil return line in the way. But that too is just a matter of knowledge. I struggled for a while, then went on the forum and read that some guys loosen the exhaust manifold bolts just enough to drop the exhaust pipe out of the way. I’m looking forward to the time when I know this bike so well that the troubleshooting part will be a no-brainer and I’ll know the route before starting a job. Until then, patience and persistence are my travelling companions. 20180422_145248

The Mother of Invention

Last fall while practising some off road skills, I broke my radiator. I was working on power slides using two cones and riding hard in a figure eight. In a power slide, you brake slide into the corner, then at the apex crack the throttle, break the rear end loose, and slide the back end around as you accelerate out of the corner. In one attempt, I must have angled the bike too much or not cracked the throttle enough (you’re aiming for the right combination of both) because the bike just plopped down on its side. It was already at a steep angle and didn’t fall far, and onto sand, no less, so I didn’t think much of it. But a few minutes later the temperature light came on and the bike overheated. At over $600 for a new radiator and no used ones available on eBay, I decided to put the bike into storage early and deal with it in the spring.

This gave me a whole winter to think about what happened. Was it just bad luck? I decided to buy some upper crash bars to protect the faring and radiator in the future. I have lower crash bars and even some makeshift ones that I’ve had welded onto those, extending out past the pegs and which I thought would be wide enough to protect the upper part of the bike in a fall. But this happened on sand, not asphalt, so they simply sunk into the sand and didn’t stop the impact on the radiator. Ironically, if the bike had fallen on asphalt, I’d be $600 richer. So yeah, bad luck. But I also got to thinking about the Dakar riders and how they dump their bikes all the time on sand and don’t end up with busted radiators. What saves their rads on impact and not mine?

Two winters ago, I was considering a trip to Blanc Sablan, QC, which would have required riding the Trans-Labrador Highway. It’s 1,500 kilometres of gravel road, and without cell service (only satellite phones placed periodically along the highway) and logging trucks barreling past you, it’s imprudent to be without a radiator guard. One errant stone thrown or kicked up into the fragile fins of the rad and you are stranded in the middle of . . . not nowhere, but Labrador, and that’s not good. So I  installed a radiator guard.

From the beginning, I wasn’t entirely happy with it. For one, it required removal of the OEM (Original Equipment Manufacturer) shrouds to install. One look at the shrouds and you can see they’re designed to funnel air into the radiator as well as offer some protection from flying stones. In addition to concerns about adequate cooling, the guards (there are two, one for each side) are also a little flimsy. They are thin aluminum, designed to be light, but because the body panels snap into grommets on the guards (or, originally, the shrouds), they serve another important purpose in supporting the structural integrity of the bike.

Looking at the guard that came off my bike, I could see that it had buckled upon impact.

And this is after some initial straightening. My guess is that the body panel bent the guard and the weight of the bike torqued the radiator. (The leak is in a bottom corner.) It might even be that the guard was shoved into the radiator upon impact because some of the fins are damaged. The OEM shrouds, although plastic, are stronger and might have prevented the damage. Ironically, it’s quite possible that my radiator guard led to my radiator breaking! The lesson here is beware of altering OEM parts on your bike. Sometimes those German engineers know what they are doing. And these bikes, all bikes today, are thoroughly tested before going on the market. Swap out OEM parts for aftermarket ones with prudence!

So I decided to go back to using the OEM shrouds. I wasn’t completely happy because my new radiator would still be vulnerable. The only other major manufacturer of guards for my bike also requires that you remove the shrouds. I therefore had no choice but to try making my own, some that would fit inside the openings of the shrouds.

When I was a kid and was working on my bicycle (or some other project) and needed something very specific, I’d just walk around in my parents’ basement until I found it. I’d have a vague idea in mind of what I needed, and since my parents’ basement was filled with stuff of all kinds, it was just a matter of time before something that would do just the trick presented itself. Walking through a home renovation warehouse is a similar experience. You don’t know exactly where to find what you envisage or even what section it might be in, but keep walking. In my case, I found my new radiator guards in the eavestroughing section.

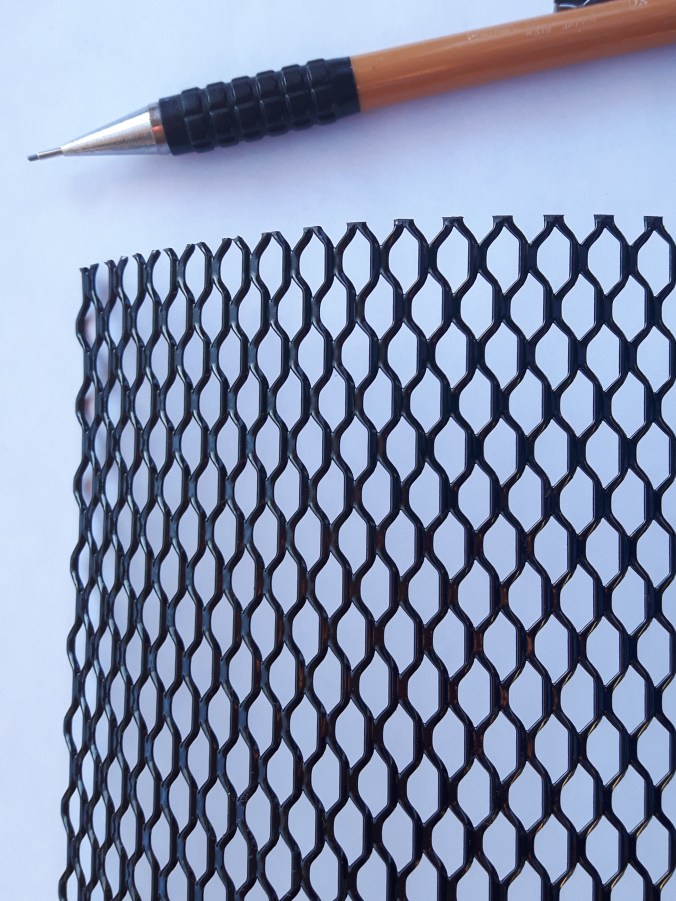

I started with some aluminium grill that goes in your gutters to keep leaves out. It was cheap and perfect width and even pre-painted black. Most importantly, the openings were the right size—not so big as to let small stones through but big enough to allow sufficient airflow. It was also strong enough to withstand the shake, rattle, and (unfortunately) roll of off-roading. stretched aluminum

Then I carefully measured the openings of the shrouds. MeasuringI used some cardboard and created templates that I could fit into the openings. They were basically squares but with the edges folded about 1/4″. I would use those edges to fix the grill to the shroud, but more on that later. I had to cut the corners so when folded they became like a box (or half a box). One opening on each side was a little tricky because one side of the square is not straight but has a jog. Carefully measuring and fiddling is necessary, but better to do this with cardboard before cutting into your grill.templates

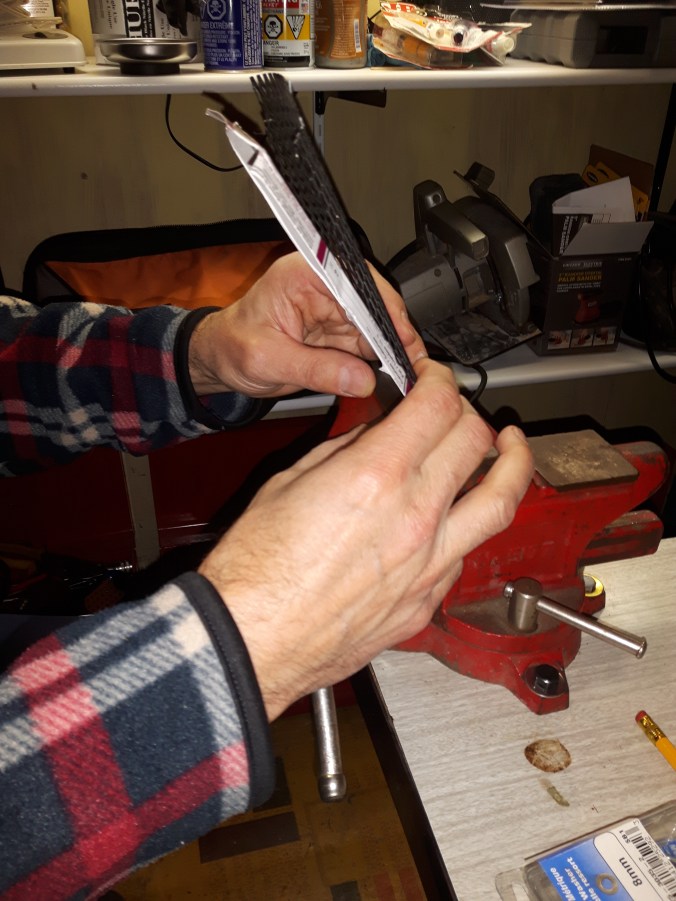

When I had the four templates, I held each up to the grill and cut using tin-snips. CuttingThis is a little messy and you have to vacuum carefully afterwards to collect all the sharp bits of discarded metal. I then held the template against the cut metal and used my Workmate, my vice, and some blunt-nosed pliers to fold and shape the guards.Folding I offered each into its opening and tweaked. FittingThis requires patience, but if you follow your templates as a guide, which you know fit well, you’ll eventually get there. Use the tin-snips or pointed-nose pliers to trim off or bend in sharp edges that can scrape the plastic as you fit them. If you do scratch the plastic a bit, use some Back to Black or Armour All to lessen the visibility of the scratch.

Finally, I wrapped each edge with electrical tape to give it a finished look and prevent the sharp edges from scratching with vibration. TapingFortunately, those clever German engineers had the foresight to drill two holes in the opposite side from the mounting points, probably with something like this in mind. When the guards are done, you can fix them into the shrouds using the mounting screws on the inside and either zip ties or 1/2″ 10-24 machine screws and washers on the outside. I decided to go with the screws just to be sure everything stays put.

Here’s the finished product. I’m happy that I’ll get the cooling effect of the OEM shrouds plus protection for my new (expensive!) rad.Finished covers

These guards are particular to my bike and unless you have a 650GS you’re going to be facing a different situation. Maybe there is a good guard or any other add-on for your bike on the market. But if there isn’t, or if you’re not entirely happy with the product or the price, don’t overlook the option of making it yourself. With a little ingenuity, time, and patience, you can sometimes do better and save yourself some money in the process.
